Archive  >  COMPACT

The COMPACT mobile shelving system offers the ideal solution to the problem of storage space in public bodies, banks, insurance agencies and in any situation where the recovery of free areas for the archive is needed.

With the COMPACT system you can achieve an optimization of the area used up to 80%. Depending on the type of shelf chosen there is the possibility of storing various types of archival materials such as hanging or standing/box files, folders or boxes.

The movement of the mobile units can be pushed mechanically or through a handwheel or as an alternative to electric motorization.

Features:

• DO NOT require built-in ground rails or connecting platform
• the wagons are completely modular and can also be reconfigured at a later time
• each supporting upright rests on a crossbar with wheels, optimally unloading the weight on the floor
• All driving wheels are connected to the traction system

Opzionals:

• LED lighting on the open aisle
• removable drawers
• removable frames for hanging files
• access with password (only on the electric version)
• archive management with Doc Expert software and wireless handheld

Technical informations

• Shelving height: from 1 to 5 mt.
• Wagon length: from 0.8 to 10 meters
• Depth of the single shelves: from 300 to 600 mm
• Vertical pitch of the shelves: 25 mm

Scarica la brochure COMPACT

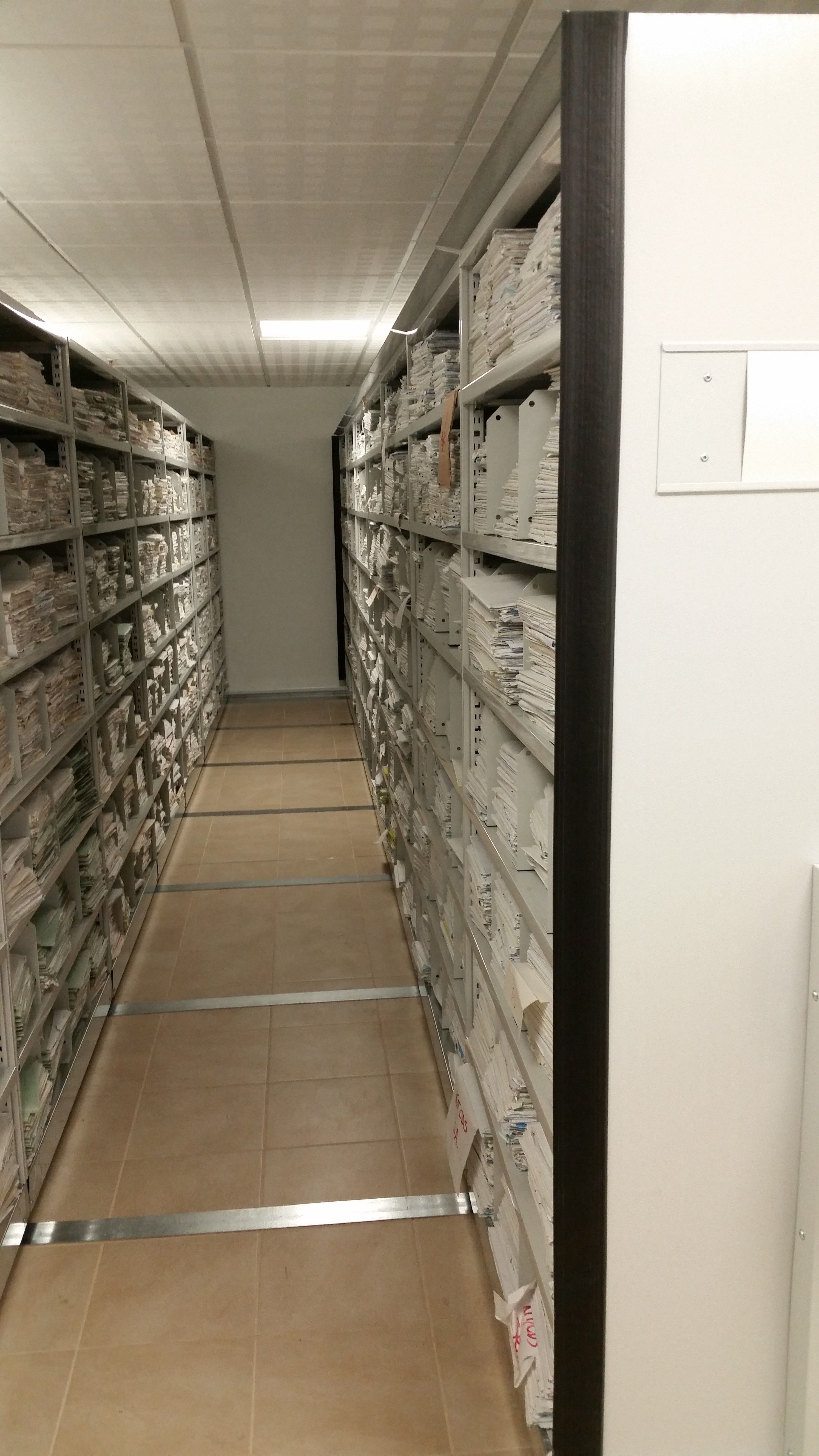

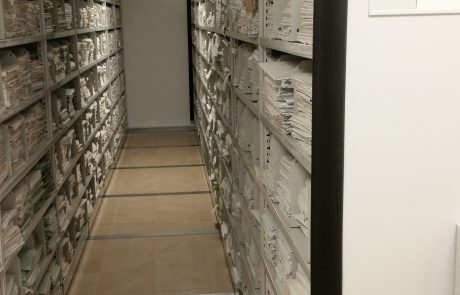

Case Study

Prefettura e Questura di Pistoia

Problema: la Prefettura e la Questura di Pistoia si trasferiscono nella nuova sede dove occorre sistemare i documenti accumulati negli anni e prevedere lo spazio per i documenti futuri.

Soluzione:  con il sistema Compact ILMAG è stato possibile archiviare materiale cartaceo per 2838 metri lineari.
